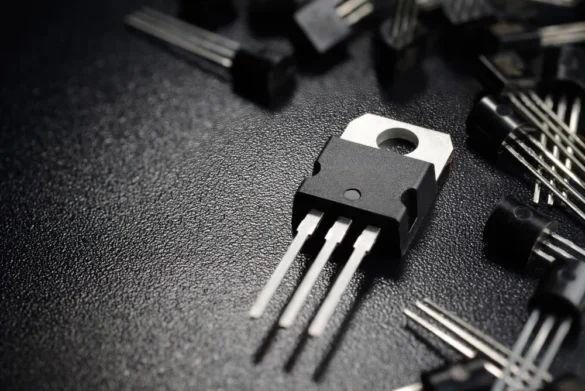

The transistor is arguably the most important invention of the 20th century. Without it, there would be no computers, smartphones, or internet. These tiny semiconductor devices act as electronic switches or amplifiers, and they form the foundation of all modern electronics—from radios and televisions to microprocessors and quantum computers.
Transistors revolutionized technology by replacing bulky, inefficient vacuum tubes. They enabled the miniaturization of circuits, leading to the rise of integrated circuits (ICs), microchips, and ultimately the information age. Understanding transistors is fundamental to understanding how the modern world works.
A Brief History of the Transistor
Before the invention of transistors, electronic circuits relied on vacuum tubes to amplify signals and switch electronic states. However, vacuum tubes were large, fragile, consumed a lot of power, and generated heat.
The breakthrough came in 1947 at Bell Labs, where three physicists—John Bardeen, Walter Brattain, and William Shockley—developed the first working point-contact transistor. This invention earned them the 1956 Nobel Prize in Physics.
Shortly after, Shockley invented the bipolar junction transistor (BJT), which became the basis for future transistor development. Over the next few decades, researchers improved transistor design, resulting in smaller, more reliable, and more efficient components.
The invention of the field-effect transistor (FET), and later the metal-oxide-semiconductor field-effect transistor (MOSFET) in the 1960s, ushered in a new era. MOSFETs could be mass-produced and integrated onto silicon chips, leading to the creation of integrated circuits and microprocessors—the heart of all computing devices today.
What Is a Transistor?
A transistor is a semiconductor device that can either amplify an electrical signal or act as a switch. It typically has three terminals:
- Emitter
- Base (or Gate in FETs)
- Collector (or Drain in FETs)
It operates using materials like silicon or germanium, which are semiconductors—materials that can act as both conductors and insulators depending on how they are treated.
In its most basic form, a transistor works by controlling the flow of current through a semiconductor by applying a small input current or voltage. This small control signal can turn a larger current on or off, which is the essence of switching.
Types of Transistors
There are many different kinds of transistors, but the two main categories are:
1. Bipolar Junction Transistors (BJTs)
These transistors have three layers of semiconductor material and come in two polarities: NPN and PNP.
- NPN Transistors: The current flows from collector to emitter when a small current is applied to the base.
- PNP Transistors: The current flows from emitter to collector when a small current is withdrawn from the base.
BJTs are current-controlled devices and are known for their high gain and ability to amplify signals. They are commonly used in analog circuits.
2. Field-Effect Transistors (FETs)
These transistors use voltage rather than current to control the flow of electricity.
- Junction FET (JFET): Controls current with a reverse-biased gate junction.
- Metal-Oxide-Semiconductor FET (MOSFET): The most widely used type of transistor today, particularly in digital circuits.
MOSFETs are especially suitable for integration into chips, and billions of them are used in a single CPU or GPU.
How Transistors Work
Let’s consider the NPN BJT as an example. It consists of three layers:
- The emitter is heavily doped to emit a high number of electrons.
- The base is thin and lightly doped.
- The collector is moderately doped and collects electrons from the emitter.
When a small current is applied to the base, it allows a much larger current to flow from the collector to the emitter. This is called current amplification.
In MOSFETs, a voltage applied to the gate terminal creates an electric field that allows current to flow between the source and drain. The absence of gate current means they consume less power—ideal for modern microchips.
Applications of Transistors
Transistors are everywhere. Some of their major applications include:
1. Switches
Transistors are the basic building blocks of logic gates in digital electronics. They operate in either “on” (saturated) or “off” (cut-off) states to represent binary values (1 and 0).
Billions of transistors are used in microprocessors to perform logical operations that run everything from word processors to artificial intelligence models.
2. Amplifiers
In analog electronics, transistors amplify weak electrical signals. For example, a small sound signal from a microphone is amplified by transistors in a speaker system.
3. Oscillators
Transistors are used in oscillators, which generate repetitive signals like clock pulses in digital circuits or radio waves in transmitters.
4. Power Regulation
Transistors in power supplies regulate voltage and current in chargers, adapters, and internal circuits.
Transistors in Integrated Circuits (ICs)
An integrated circuit (IC) is a collection of transistors, resistors, capacitors, and other components etched onto a single piece of silicon.
Modern CPUs and memory chips are essentially massive collections of transistors—Intel’s 12th Gen Alder Lake processor, for example, contains billions of transistors.
Thanks to Moore’s Law, transistor density has doubled roughly every two years, leading to exponential increases in processing power and efficiency.
The Impact of Transistors
The invention of the transistor marked the beginning of the Third Industrial Revolution—the Digital Age. Its impact is immense:
- Enabled the development of personal computers, smartphones, the internet, and all modern communication systems.
- Revolutionized industries from medicine (e.g., MRI machines) to entertainment (digital music and streaming).
- Made space exploration and automation possible.
- Laid the groundwork for artificial intelligence, robotics, and quantum computing.
Modern Innovations and Challenges
As we approach the atomic limit of transistor miniaturization, engineers are looking for alternatives to traditional silicon-based designs.
- FinFETs and Gate-All-Around (GAA) FETs are new architectures that improve performance at smaller scales.
- Graphene transistors and carbon nanotube transistors offer promising new materials beyond silicon.
- Spintronics and quantum transistors may one day revolutionize computation again.
Despite these advances, manufacturing at nanoscale introduces challenges like heat dissipation, leakage currents, and quantum tunneling.
Conclusion
Transistors are not just components—they are the foundation of modern civilization. From their humble origins in a Bell Labs laboratory to their omnipresence in every digital device today, transistors have reshaped the world.
They exemplify the power of scientific innovation and engineering ingenuity. As we move toward even more sophisticated technologies—like quantum computing and AI—transistors will remain at the heart of it all, quietly performing billions of operations per second, enabling our digital lives.
The transistor is the unsung hero of the modern world—small in size, but colossal in impact.
