Introduction
Oscilloscopes are fundamental tools in electronics and electrical engineering, providing visual insight into voltage signals over time. Among the wide range of oscilloscopes available on the market, the RIGOL DS1054Z has emerged as a standout entry-level digital storage oscilloscope (DSO), renowned for its affordability, performance, and feature-rich design. Despite its budget-friendly price point, it delivers features previously limited to much more expensive models, making it highly popular among hobbyists, students, educators, and professionals alike.
This article delves into the features, specifications, performance, advantages, disadvantages, and real-world applications of the RIGOL DS1054Z, aiming to provide a complete understanding of why this device remains a dominant force in the budget oscilloscope market.
Key Specifications
Before analyzing its performance and features, let’s take a look at the DS1054Z’s core specifications:
- Bandwidth: 50 MHz (can be unlocked to 100 MHz via a software hack)
- Channels: 4 Analog Channels
- Sample Rate: 1 GSa/s (shared among active channels)
- Memory Depth: 12 Mpts (upgradeable to 24 Mpts)
- Waveform Capture Rate: Up to 30,000 wfms/s
- Display: 7-inch WVGA (800×480) TFT LCD
- Connectivity: USB Host, USB Device, LAN (LXI compatible), optional RS-232
- Included Features: Advanced triggering, serial bus decoding (optional), math functions, FFT, waveform recording, digital filters
- Form Factor: Bench-top
Design and Build Quality

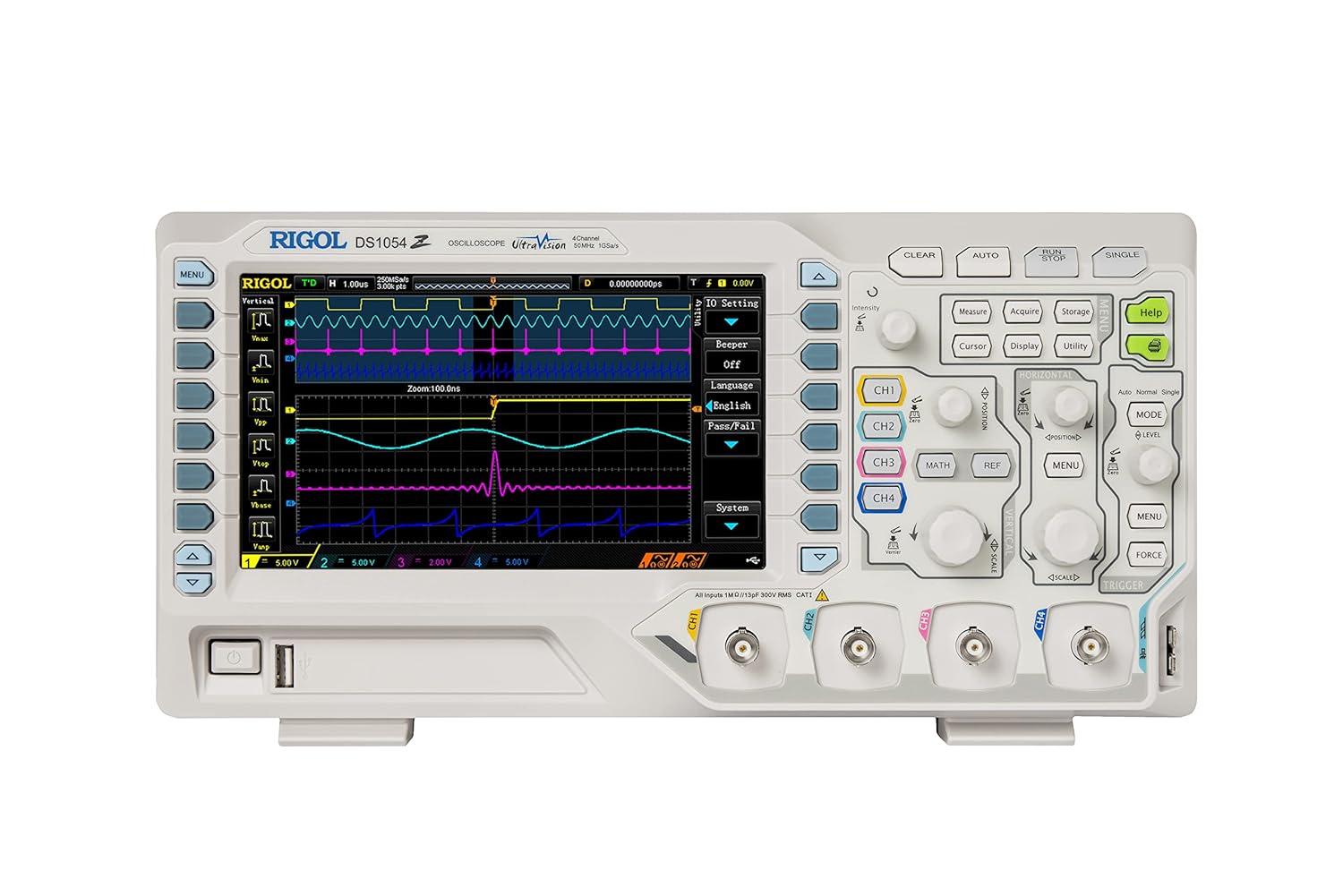

The DS1054Z is compact yet sturdy, housed in a durable plastic chassis with a clean, user-friendly interface. The front panel features four clearly labeled BNC input connectors for the channels, a large color display, and an array of buttons and knobs that provide tactile control. The rear includes LAN and USB ports, as well as a cooling fan and grounding terminal.
One of the most appreciated design elements is the 7-inch screen, which provides a clear, bright view of waveforms and menu systems. The intuitive layout of buttons ensures ease of use, even for beginners.
Performance
Bandwidth and Sampling
Out of the box, the DS1054Z offers a 50 MHz bandwidth, which is sufficient for most educational and general-purpose electronic applications. However, a well-known “hack” (widely discussed online) can unlock up to 100 MHz bandwidth and additional options such as serial decoding, deep memory, and advanced triggering. While this is not officially supported by RIGOL, it is widely used and appreciated by the community.
The 1 GSa/s sampling rate ensures high-resolution signal capture, especially when one or two channels are used. With all four channels active, the sample rate is divided, but remains effective for most low- to mid-frequency applications.
Memory Depth
The standard 12 Mpts memory depth is quite generous compared to other scopes in this price range. It enables capturing long signal sequences at high resolution, which is particularly useful for debugging digital signals. Users who unlock the optional features can extend this to 24 Mpts, further enhancing its usefulness.
Waveform Capture and Display
With a waveform update rate of 30,000 waveforms per second, the DS1054Z effectively captures and displays real-time events. While high-end scopes may go into the MHz range, this is more than adequate for most typical uses, including embedded systems work, microcontroller development, and audio analysis.
The user interface is responsive and packed with helpful features, such as intensity-graded display, waveform recording and playback, and persist display, which simulate analog scope behavior and aid in signal analysis.
User Interface and Features
The DS1054Z excels in its software features, often unmatched by similarly priced competitors. It includes:
Advanced Triggering
The scope supports a range of triggering types, such as:
- Edge
- Pulse Width
- Slope
- Video
- Pattern
- Alternate
- Delay
- Timeout
This comprehensive trigger suite enables detailed and specific waveform analysis.
Serial Bus Decoding (Optional)
When unlocked, the DS1054Z can decode protocols like:
- I2C
- SPI
- UART
- CAN
- LIN
This is a powerful tool for embedded developers working with communication buses, allowing on-screen decoding that simplifies debugging.
FFT and Math Functions
The math capabilities include:
- Addition, subtraction, multiplication, division
- Fast Fourier Transform (FFT)
- Low-pass, high-pass, band-pass filters
These tools help in analyzing signal behavior in both time and frequency domains.
Waveform Recording
The record and playback feature is another professional-grade capability. It allows users to capture sequences of waveforms and review them after the fact, useful for catching intermittent or rare signal anomalies.
Connectivity and Software Integration
The oscilloscope includes both USB host and device ports, as well as LAN connectivity. This means users can save waveform data to USB drives, control the scope remotely over a network, or interface it with a PC using RIGOL’s UltraSigma and UltraScope software.
Additionally, the LAN interface is LXI-compatible, which means it can integrate into automated test environments — a significant feature for industrial or lab use.
Real-World Applications
The DS1054Z is a highly versatile tool, suitable for:
- Education: Ideal for electronics and electrical engineering labs.
- Hobbyist Projects: Perfect for Arduino, Raspberry Pi, and other microcontroller development.
- Professional Debugging: With features like deep memory and serial decoding, it’s well-suited for low- to mid-range professional applications.
- Audio Analysis: Capable of inspecting audio waveforms and harmonics.
- Power Electronics: Useful for examining PWM signals and switching behavior.
Community and Support
A significant strength of the DS1054Z is its large and active user community. Online forums, YouTube tutorials, and Reddit threads abound with tips, reviews, hacks, and example projects. This peer-driven support can often be as valuable as manufacturer-provided assistance.
RIGOL also offers decent customer support, firmware updates, and documentation, though some users have noted that official support can be slow compared to higher-end brands like Tektronix or Keysight.
Pros and Cons
Pros
- Affordable and feature-rich
- 4 independent channels
- Large, bright display
- Deep memory (12/24 Mpts)
- Advanced triggering options
- Serial decoding (optional)
- LAN and USB connectivity
- Solid community support
Cons
- 50 MHz default bandwidth (needs hack for 100 MHz)
- User interface can be sluggish at times
- Noise floor slightly higher than premium brands
- Fan noise is noticeable
- No built-in battery (not portable)
Alternatives
While the DS1054Z is arguably the best oscilloscope under $400, some alternatives include:
- Siglent SDS1104X-E: Similar price and features, with slightly better waveform update rates and a more modern UI.
- Hantek DSO5102P: Cheaper but less capable in terms of bandwidth and sample rate.
- OWON VDS1022I (PC-based scope): Compact and PC-controlled, but lacks the standalone utility of the RIGOL.
Conclusion
The RIGOL DS1054Z represents an exceptional value proposition in the world of digital oscilloscopes. For students, educators, hobbyists, and even many professionals, it offers an almost unbeatable combination of functionality, usability, and price. It bridges the gap between basic and professional instruments by delivering high-end features at a budget price.
While it isn’t perfect — and some features are only available through unofficial means — the DS1054Z still remains a solid investment and a powerful tool for anyone working in electronics.
