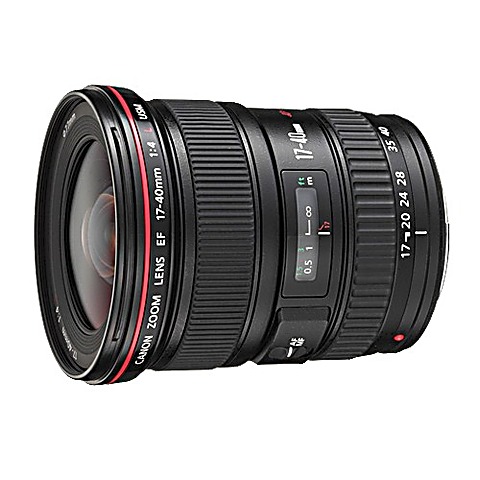

The Canon EF 17–40mm f/4L USM lens holds a special place in the Canon L-series lineup. Designed primarily for full-frame DSLR users but also compatible with APS-C bodies, it is widely appreciated for its combination of professional build quality, wide-angle versatility, and affordability.
Introduced in 2003 as a more compact and cost-effective alternative to the Canon EF 16–35mm f/2.8L, the 17–40mm has become a favorite among landscape photographers, travel enthusiasts, architectural shooters, and anyone who needs wide-angle coverage without the weight and cost of a faster lens.
Key Specifications
- Focal Length: 17–40mm
- Maximum Aperture: f/4
- Minimum Aperture: f/22
- Lens Construction: 12 elements in 9 groups
- Diaphragm Blades: 7
- Minimum Focusing Distance: 0.28 m / 0.92 ft
- Maximum Magnification: 0.24×
- Filter Size: 77mm (front) + gel filter holder at the rear
- Image Stabilization: No
- Weight: 475g (1.05 lb)
- Length: 96.8 mm
- Mount Type: EF (compatible with both full-frame and APS-C DSLRs)
- Weather-Sealing: Yes, including rubber gasket at the lens mount (with front filter attached)
Build Quality and Design
As an L-series lens, the 17–40mm is built to Canon’s high professional standards. The body is made from high-grade polycarbonate with a solid feel and excellent durability. It features weather-sealing, including a rubber gasket around the lens mount that becomes effective when a protective filter is installed on the front element.
Despite its durable construction, the lens is surprisingly lightweight at only 475 grams. This makes it ideal for backpackers, hikers, and travel photographers who want to minimize bulk while maximizing field-of-view coverage.
The zoom and focus rings are smooth and precise, with internal focusing and zooming—meaning the lens does not extend or rotate during operation. This internal design is beneficial when using filters such as polarizers or graduated NDs, which require consistent alignment.
Optical Performance
While not the absolute sharpest ultra-wide on the market, the Canon EF 17–40mm f/4L USM provides very good optical performance, especially considering its age and price point.
Sharpness
- At 17mm, center sharpness is good wide open at f/4, but the corners are noticeably soft. Stopping down to f/5.6 or f/8 significantly improves edge sharpness.
- At 24mm, the lens reaches a sweet spot: excellent central sharpness and better edges, especially from f/5.6 onwards.
- At 40mm, sharpness is strong in the center, though not quite as crisp at the edges. This lens performs best at mid to wide focal lengths and slightly stopped-down apertures (f/5.6–f/11).
For landscape and architectural work, where edge-to-edge sharpness is important and small apertures are common, this lens performs very well.
Distortion
- At the wide end (17mm), there is noticeable barrel distortion, typical of ultra-wide zooms. This can be corrected easily in post-processing.
- As the lens zooms toward 40mm, distortion lessens and becomes nearly unnoticeable.
Vignetting
- Vignetting is present at f/4, particularly at 17mm on full-frame bodies. However, stopping down even to f/5.6 reduces it substantially.
- On APS-C cameras (where the lens functions more like a 27–64mm equivalent), vignetting is far less of a concern due to the crop factor.
Chromatic Aberration and Flare
- Chromatic aberration (CA) is generally well-controlled, though minor lateral CA can appear in high-contrast areas. It’s easily corrected in software.
- The lens has good flare resistance, aided by its Super Spectra Coating, but flare and ghosting can still occur when shooting directly into bright light sources. Using the included lens hood (EW-83E) helps mitigate these effects.
Autofocus Performance
The EF 17–40mm f/4L uses Canon’s Ring-Type Ultrasonic Motor (USM), which delivers:
- Fast and accurate autofocus
- Quiet operation
- Full-time manual override without switching out of AF mode
These qualities make it suitable for both still photography and occasional video use, although modern STM or Nano USM lenses are smoother for continuous video autofocus.
The minimum focus distance of 0.28 meters enables some semi-macro capabilities, especially when zoomed in. While it’s no replacement for a dedicated macro lens, it allows for creative wide-angle close-ups.
Practical Uses and Applications
The Canon 17–40mm f/4L is designed to serve a wide range of photography needs, particularly where a broad field of view is desired.
Landscape Photography
Arguably the strongest use case for this lens is landscape photography. The 17–40mm focal range allows photographers to capture sweeping vistas, dynamic skies, and foreground interest all in one frame. At 17mm, it emphasizes scale and distance, making scenes appear larger than life.
The f/4 aperture is not a drawback here because landscape photographers often shoot at f/8 to f/16 for depth of field. Combined with its light weight and weather sealing, it’s ideal for outdoor adventures.
Architecture and Interiors
At 17mm on a full-frame camera, the lens is great for capturing tight interior spaces or dramatic architectural shots. While there is some barrel distortion, careful positioning or software correction can yield straight, professional-looking lines.
For real estate photographers, it’s a lightweight, affordable, and effective solution for wide interior shots.
Travel Photography
This lens is ideal for travel due to its compactness, toughness, and coverage. Whether you’re shooting street scenes in a busy market or dramatic coastal cliffs, the 17–40mm provides flexibility without being intrusive or heavy.
Its weather sealing ensures it can handle rain, dust, or snow, making it an ideal companion in unpredictable environments.
Event and Documentary Use
On APS-C bodies, the 17–40mm becomes roughly 27–64mm equivalent, putting it in a more standard zoom territory. This can work well for events or street photography, especially when compactness and reliability are valued over low-light performance.
Weaknesses and Limitations
Despite its strengths, the lens does come with a few trade-offs:
- Fixed f/4 aperture limits its usefulness in low light or for shallow depth-of-field effects. It’s not the best option for night photography, indoor events, or portraiture where subject separation is important.
- Lack of Image Stabilization (IS) means slower shutter speeds require a tripod or excellent hand-holding technique.
- Corner softness at wide apertures and wide focal lengths, while manageable, is noticeable and may not satisfy pixel peepers.
However, for its price and intended purpose, these limitations are reasonable.
Comparison with Alternatives
vs. Canon EF 16–35mm f/2.8L II / III
- The 16–35mm f/2.8L is faster and better in low light.
- The 17–40mm is significantly lighter and more affordable.
- The newer 16–35mm f/2.8L III has sharper corners and better flare control, but at a much higher cost.
vs. Canon RF 14–35mm f/4L IS USM (Mirrorless)
- The RF 14–35mm has IS, wider focal length, and newer optical design.
- The EF 17–40mm still wins in price and weight but is not natively compatible with RF-mount bodies.
vs. Canon EF-S 10–18mm (for APS-C)
- The EF-S 10–18mm is lighter, cheaper, and has IS but is not full-frame compatible and is plasticky.
- The 17–40mm offers better build, weather sealing, and overall optical quality.
Value for Money
The Canon EF 17–40mm f/4L USM is considered by many as one of the best-value wide-angle lenses in the Canon lineup. For photographers looking to step into the world of L-glass without spending over $1,000, it offers a compelling combination of quality, durability, and affordability.
As of today, used prices typically range from $300–$500 USD, making it a smart investment for amateur and professional photographers alike.
Conclusion
The Canon EF 17–40mm f/4L USM is a rugged, lightweight, and optically solid wide-angle zoom that continues to be relevant even decades after its release. Its weather sealing, fast autofocus, and excellent handling make it a practical and dependable choice for landscape, travel, and architectural photographers.
Though not the fastest or sharpest ultra-wide available today, it offers a remarkable price-to-performance ratio and remains a favorite in many camera bags. Whether you’re a full-frame shooter looking for a budget-friendly wide-angle or an APS-C user in search of a compact walkaround lens, the 17–40mm f/4L delivers consistent results.
