Introduction
Released in September 2014, the GeForce GTX 970 became one of the most popular graphics cards of its era. It was part of NVIDIA’s Maxwell architecture family and was launched alongside the higher-end GTX 980. Despite being a “cut-down” version of the flagship card, the GTX 970 surprised gamers with performance that punched well above its $329 USD launch price.
With solid 1080p and even 1440p gaming capabilities, excellent power efficiency, and broad third-party support, the GTX 970 became a favorite among PC gamers for years. It’s also remembered for a technical controversy that led to class-action lawsuits—but more on that later.
Specifications Overview
| Feature | Specification |
|---|---|
| Architecture | Maxwell (GM204) |
| CUDA Cores | 1,664 |
| Base Clock | 1,050 MHz |
| Boost Clock | 1,178 MHz |
| Memory | 4 GB GDDR5 (3.5 GB + 0.5 GB) |
| Memory Bus | 256-bit (224-bit + 32-bit) |
| Memory Bandwidth | 224 GB/s |
| TDP | 145W |
| Launch Price | $329 USD |
The GTX 970 featured 1,664 CUDA cores, 104 texture units, and 56 ROPs. It also used 4 GB of GDDR5 memory, although the configuration—specifically 3.5 GB + 0.5 GB partitioning—became a key point of controversy later.
Still, the card delivered performance nearly matching the more expensive GTX 780 from the previous generation, while being quieter, cooler, and significantly more power-efficient.
Maxwell Architecture: Power and Efficiency
The GTX 970 was built on Maxwell, NVIDIA’s 2nd generation architecture after Kepler. Maxwell delivered enormous improvements in performance per watt and introduced a range of new features:
- SM (Streaming Multiprocessor) Maxwell units, offering more power-efficient parallel processing
- Dynamic Super Resolution (DSR) – allowing higher-than-native resolution rendering
- MFAA (Multi-Frame Sampled Anti-Aliasing) – a smarter, faster anti-aliasing method
- VXGI (Voxel Global Illumination) – for more realistic lighting
- Full support for DirectX 12, OpenGL 4.5, and CUDA 6.5
- Improved memory compression algorithms, increasing effective bandwidth
Compared to the Kepler-based GTX 700 series, Maxwell represented a paradigm shift in efficiency. With a TDP of just 145W, the GTX 970 ran cool and quiet, even under load.
Performance: The Sweet Spot for 1080p and 1440p Gaming
At launch and for years afterward, the GTX 970 handled most modern games at 1080p Ultra settings and 1440p on High settings. It was also surprisingly capable at 4K gaming, especially with settings dialed down.
Gaming Benchmarks (2014–2016)
| Game | 1080p Ultra | 1440p High |
|---|---|---|
| The Witcher 3 | 50–60 FPS | 40–45 FPS |
| GTA V | 70–80 FPS | 55–60 FPS |
| Tomb Raider (2013) | 80–100 FPS | 60–75 FPS |
| Battlefield 4 | 90+ FPS | 70–80 FPS |
| Far Cry 4 | 60 FPS | 50 FPS |
The GTX 970’s performance was especially impressive when compared to previous-gen high-end cards like the GTX 780 and GTX 770, offering similar or better results at a much lower cost and power consumption.
It also directly competed with AMD’s R9 290, which offered more raw performance in some cases but ran hotter, louder, and consumed more power.
The 3.5 GB VRAM Controversy
Initially, NVIDIA marketed the GTX 970 as having 4 GB of usable VRAM, a reasonable and important figure for gamers moving toward high-resolution textures and 1440p+ gaming.
However, it was later discovered that the GTX 970 only had 3.5 GB of high-speed memory, with the remaining 0.5 GB segment slower and on a separate memory partition. Once games used more than 3.5 GB of VRAM, performance sometimes dipped unexpectedly.
This design stemmed from the way Maxwell handled its memory controller and ROP allocation, and NVIDIA’s communication about the specs was misleading. After backlash, NVIDIA admitted the miscommunication, but the damage had been done.
Legal Fallout
In 2015, multiple class-action lawsuits were filed. In 2016, NVIDIA agreed to a settlement offering $30 compensation to U.S. customers who purchased the card, admitting no wrongdoing but settling to avoid prolonged legal battles.
While the controversy slightly tarnished its legacy, it didn’t overshadow the GTX 970’s success in the market.
AIB Partner Models and Overclocking
Numerous board partners released custom versions of the GTX 970, including:
- EVGA GTX 970 FTW ACX 2.0
- ASUS Strix GTX 970

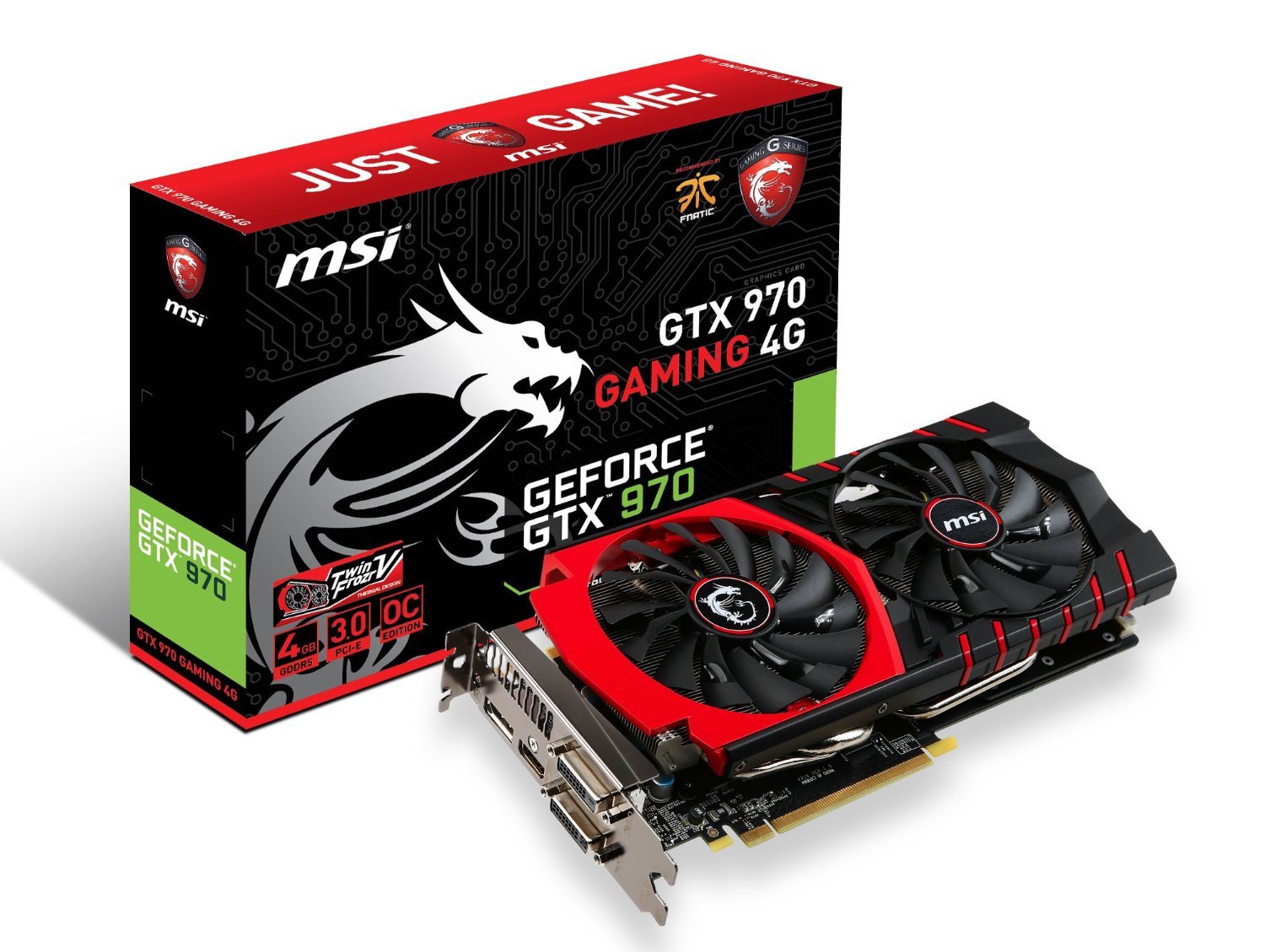

- MSI GTX 970 Gaming Twin Frozr V
- Gigabyte G1 Gaming GTX 970
These cards offered:
- Improved cooling solutions
- Factory overclocks
- Extra power phases for better voltage regulation
- Near-silent performance
The GTX 970 was an excellent overclocker, with many users achieving stable boost clocks over 1,400 MHz and memory overclocks pushing bandwidth well beyond factory specs.
Real-World Usage and Longevity
What made the GTX 970 so successful was not just raw performance, but how long it remained viable:
- From 2014 to around 2019, it remained a solid card for 1080p and light 1440p gaming.
- It ran popular esports titles (CS:GO, Overwatch, Dota 2, Fortnite, etc.) smoothly even into the early 2020s.
- Support for DirectX 12 allowed it to stay relevant for new game engines.
- The 4 GB VRAM limit eventually became a constraint, especially in AAA games with high-resolution textures.
Many users held onto their GTX 970s for 5+ years, often skipping entire GPU generations like the GTX 10-series or RTX 20-series due to price or availability issues.
Comparison with Other GPUs
| GPU | CUDA Cores | Memory | Performance |
|---|---|---|---|
| GTX 780 | 2,304 | 3 GB | 5–10% slower |
| GTX 970 | 1,664 | 3.5+0.5 GB | Excellent balance |
| GTX 980 | 2,048 | 4 GB | 15–20% faster |
| R9 290 | 2,560 | 4 GB | Comparable, but hotter |
| GTX 1060 6GB (Next Gen) | 1,280 | 6 GB | Slightly better, more efficient |
Even after the release of the GTX 1060, many gamers kept their 970s due to its strong performance and great cooling solutions.
Legacy and Collectibility
Today, the GTX 970 is considered a legendary GPU in the mid-range space. Despite the VRAM controversy, it won over consumers with:
- Strong price-to-performance ratio
- Incredible efficiency
- Solid longevity
- High build quality in AIB models
In retro and nostalgic PC building communities, the GTX 970 is still fondly remembered and even sought after for vintage gaming rigs, SteamOS machines, or emulation boxes.
Its legacy is comparable to iconic cards like:
- GTX 460 (2010)
- GTX 660 (2012)
- GTX 1060 (2016)
- RTX 3060 (2021)
Conclusion
The GeForce GTX 970 stands out as one of the most important and successful GPUs in NVIDIA’s history. Despite a controversial memory configuration, it offered gamers exceptional value and longevity. Its combination of power efficiency, feature-rich architecture, and third-party support made it the go-to choice for a huge portion of the gaming community throughout the mid-2010s.
In a rapidly evolving market, few GPUs have had the kind of impact the GTX 970 achieved. It set a standard for what a “sweet spot” card should deliver: great performance, affordable pricing, quiet operation, and versatility. For many gamers, it wasn’t just a graphics card—it was a gateway to high-quality PC gaming.
